kinetic Monte Carlo simulations of CVD diamond growth
Surface processes
Combining a knowledge of the experimental growth conditions and the type of diamond growth that results from these, with measurements of the gas composition in the CVD plasma using diagnostics like REMPI/CRDS or mass spectrometry, has allowed us to develop (in collaboration with Yuri Mankelevich of Moscow State University) a sophisticated model for the reactions and interactions of the various gas-phase species in the plasma. Extrapolating this model to the substrate surface then gives information about the identities, concentrations and energies of all the species striking a growing diamond surface for a given set of deposition conditions (gases, pressure, power, etc.). The next problem is to determine how these species interact with the surface to grow diamond. There are a number of possible processes:
- Adsorption: A gas-phase reactive radical, such as CH3, attaches to a surface radical site.
- Desorption/Etching: An adsorbed CHx species leaves the surface and returns to the gas phase.
- Migration: An adsorbed CHx species migrates around the surface, if there is a neighbouring surface radical site into which it can move.
- Addition: The adsorbing species bonds directly into the diamond lattice (Eley-Rideal-type process), or the migrating species adds onto the lattice (Langmuir-Hinshelwood-type process), either of which propagates the diamond structure.
- β-scission: Any long-chained carbon species CxHy with x>1 adsorbed on the lattice is rapidly etched away.
- Lemming: Species migrating off the top of a step-edge can do so easily, but cannot climb up a step-edge.
The rates for some of these process are known from the literature or previous experiments. Some, however, have to be calculated using ab initio models for surface chemistry.
The kinetic Monte Carlo Model
A model for the (100) surface of diamond based on a cubic grid is made, with each square block in the model equaivalent to a C atom. An ordered list of the rates for each process and for each species (including new ones that may adsorb on the surface) is created, and a process (adsorption, etching, etc.) for a given species is chosen randomly from this list with a probability proportional to its rate. That process is then performed in the model (e.g. a C is added to the lattice, or removed, or migrates,..) and the rate list recalculated. This sequence is repeated many times and the simulation of the growing diamond surface can then be visualised.
The 2D kMC Model

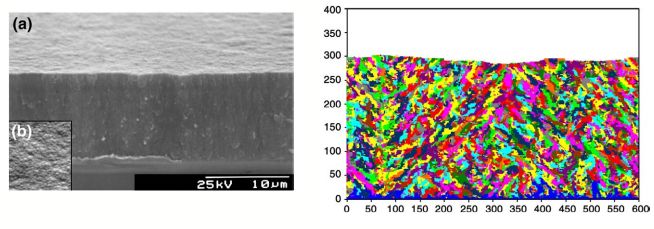

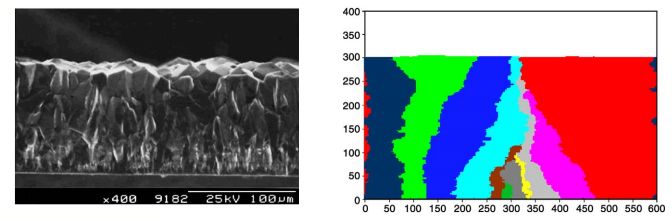

The initial model [1-5] was only in 2 dimensions, but nevertheless it was able to predict growth rates and crystal morphologies, and provide an invaluable insight into the growth process.

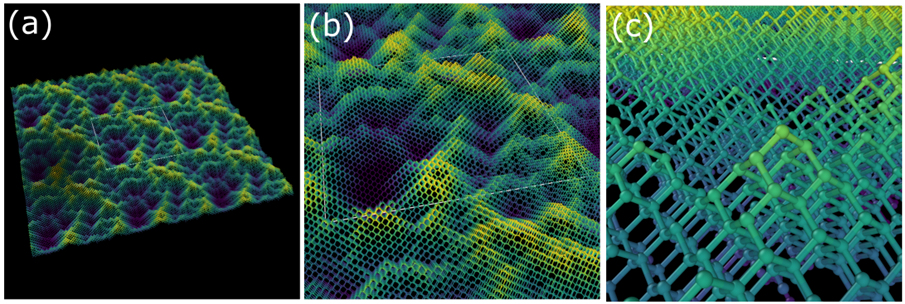

The 3D kMC Model

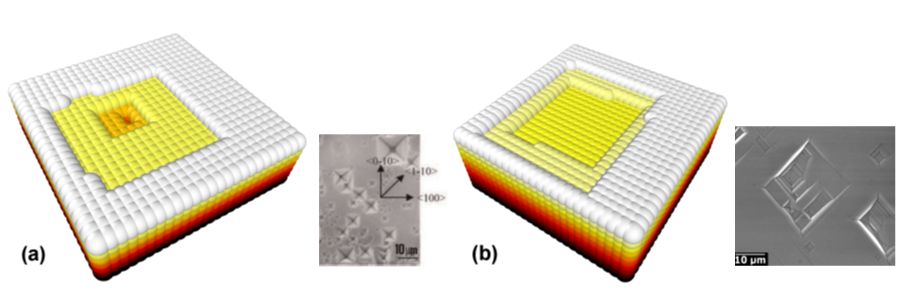

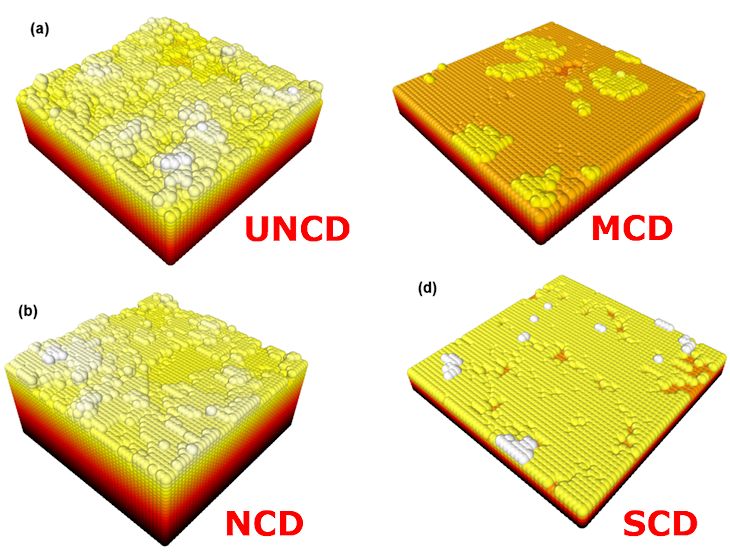

We have recently upgraded the model [6] to include the full 3D geometry of the surface, and taken into account nearest-neighbour effects upon etching/adsorption of species. This has also allowed us to predict growth features like the formation of etchpits and hillocks, and the effect upon growth rate and morphology of defects.
References:
(See the publications page for links to download these papers)
- P.W. May, N.L. Allan, M.N.R. Ashfold, J.C. Richley and Yu.A. Mankelevich, "Simplified Monte Carlo Simulations of CVD Diamond Growth", J. Phys.: Cond. Matter 21 (2009) 364203.
- P.W. May, J.N. Harvey, N.L. Allan, J.C. Richley and Yu.A. Mankelevich, "Simulations of CVD Diamond Film Growth Using a Simplified Monte Carlo Model", in Diamond Electronics and Bioelectronics — Fundamentals to Applications III, edited by P. Bergonzo, J.E. Butler, R.B. Jackman, K.P. Loh, M. Nesladek (Mater. Res. Soc. Symp. Proc. Volume 1203, Warrendale, PA, 2010), paper J16-02.
- P.W. May, N.L. Allan, M.N.R. Ashfold, J.C. Richley and Yu.A. Mankelevich, "Simulations of Polycrystalline CVD Diamond Film Growth Using a Simplified Monte Carlo Model", Diamond Relat. Mater. 19 (2010) 389-396
- P.W. May, J.N. Harvey, N.L. Allan, J.C. Richley, Yu.A. Mankelevich, "Simulations of CVD Diamond Film Growth Using a Kinetic Monte Carlo Model", J. Appl. Phys 108, (2010) 014905
- P. W. May, J. N. Harvey, N. L. Allan, J. C. Richley, Yu. A. Mankelevich, "Simulations of chemical vapor deposition diamond film growth using a kinetic Monte Carlo model and two-dimensional models of Microwave plasma and Hot Filament CVD reactors", J. Appl. Phys. 108 (2010) 114909.
- W.J. Rodgers, P.W. May , N. L. Allan, J.N. Harvey, "Three-dimensional kinetic Monte Carlo simulations of diamond chemical vapour deposition", 142 J. Chem. Phys. (2015) 214707
